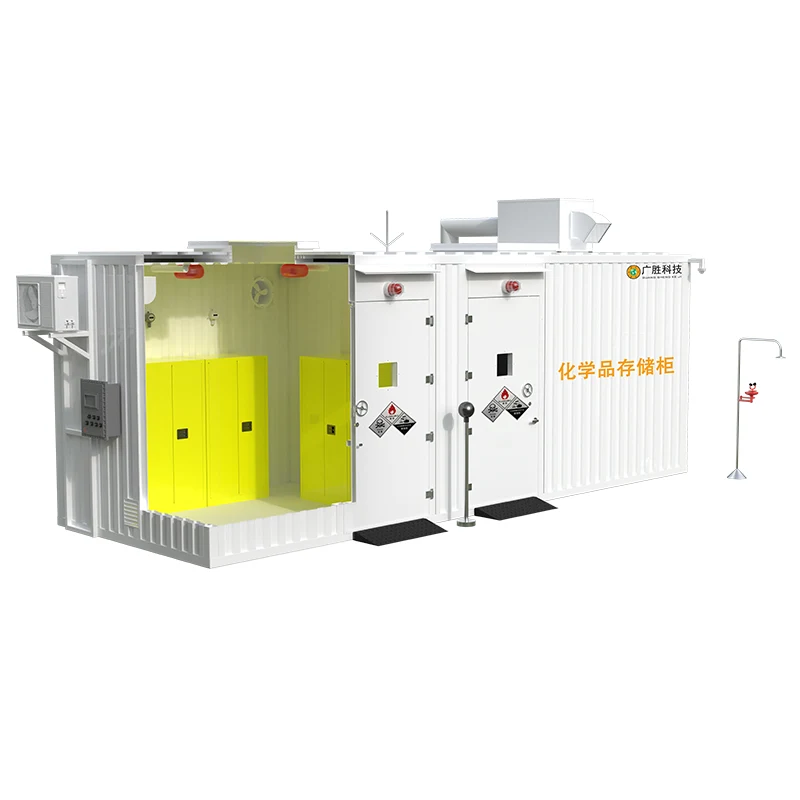

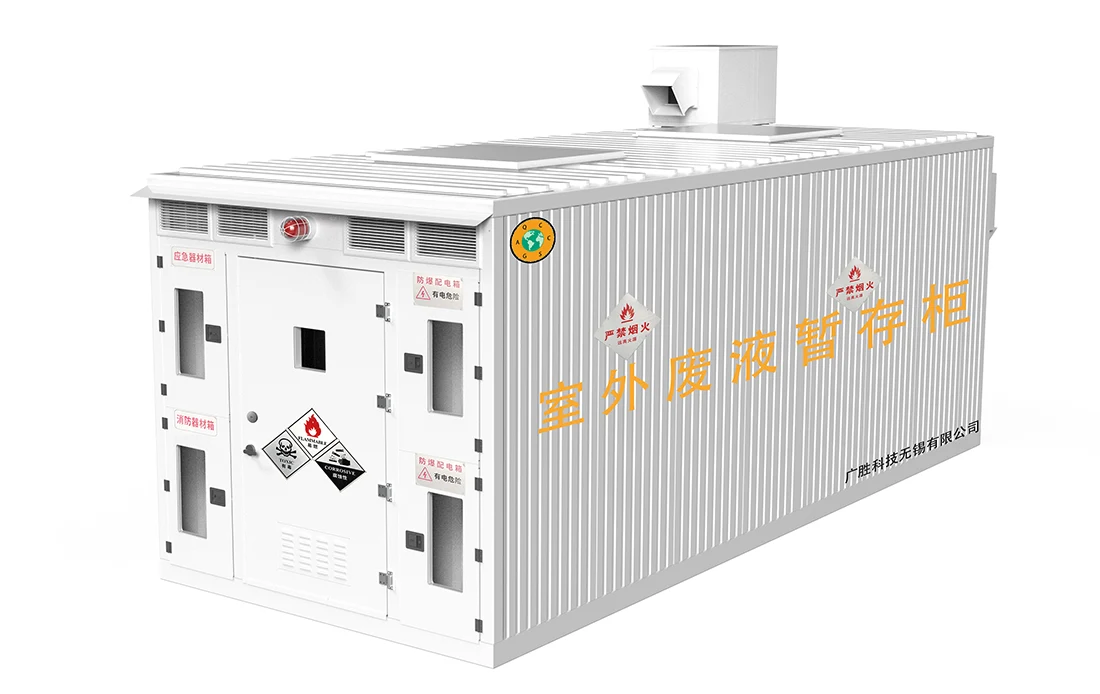

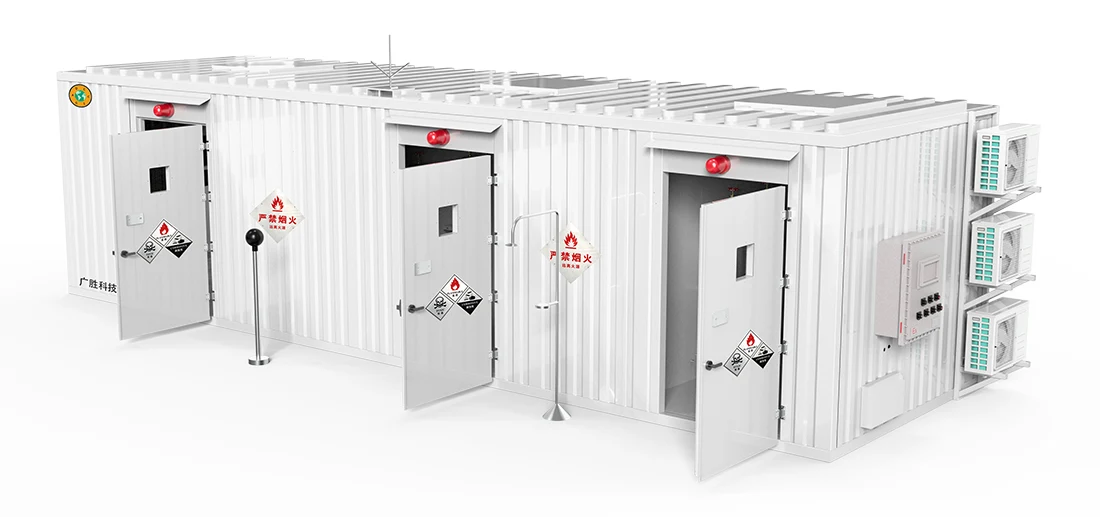

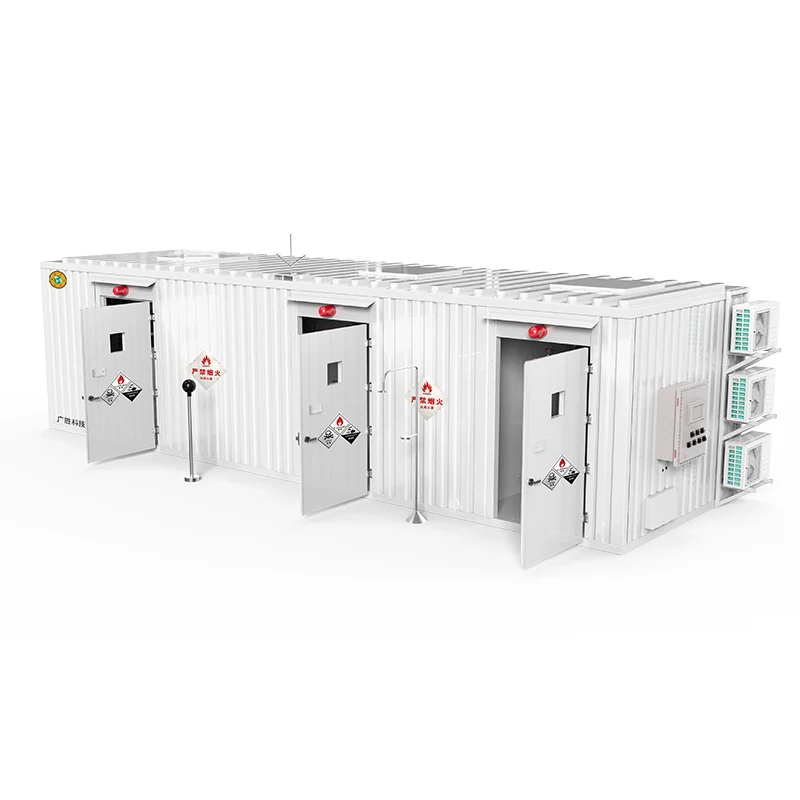

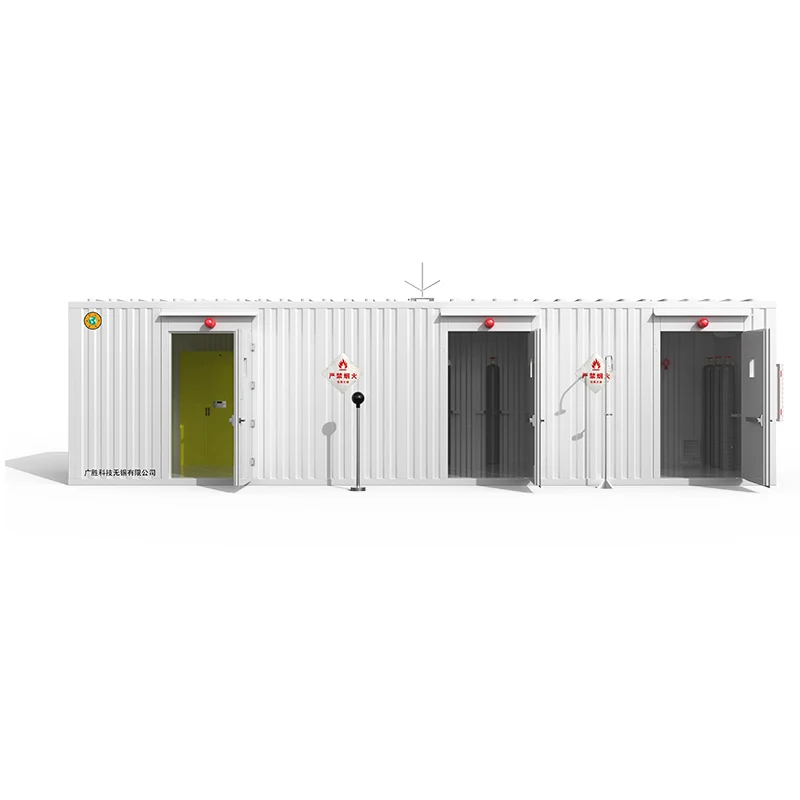

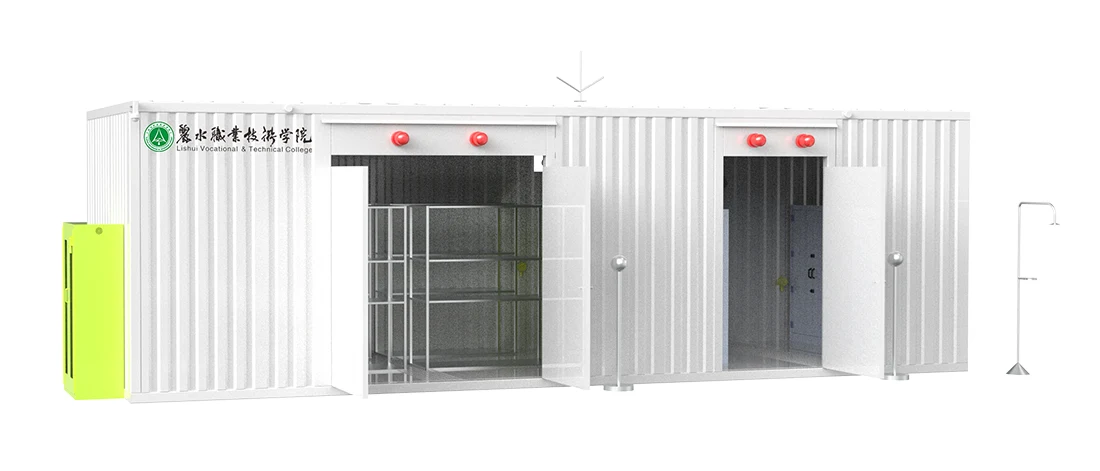

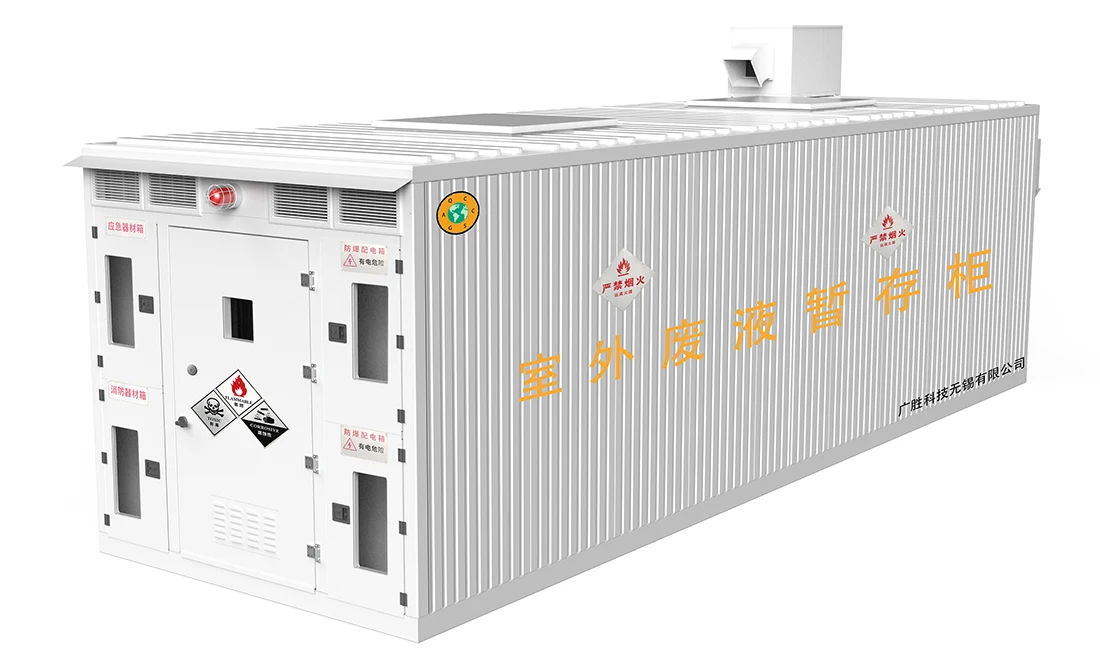

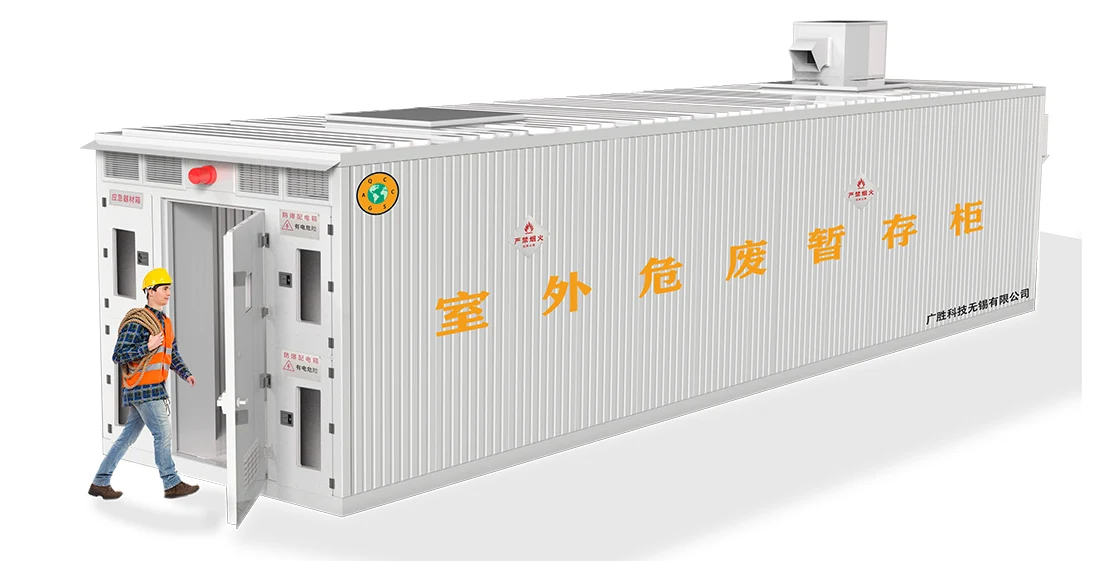

Walk-in Container Warehouses

1

Cabinet

The cabinet frame is mainly made of 2.0mm Corten A steel plates. The outer cabinet consists of a steel frame, vertically corrugated side - panels and end - panels, and horizontally and vertically corrugated top - panels, all of which are pressed from cold - rolled steel plates. The entire exterior of the cabinet is sprayed with anti - rust paint, the inner walls are coated with anti - corrosion paint, and the bottom is sprayed with polytetrafluoroethylene. The whole cabinet has anti - corrosion capabilities.
The inner wall of the cabinet uses Class A fire - proof and heat - insulating materials, with an insulation layer thickness of ≥80mm.
In case of an explosion, the cabinet top is equipped with explosion - venting panels, with 2 explosion - venting openings sized 1.1*1.1m, and the pressure - relief area is ≥0.11m²/m³. The pressure - relief surface is designed according to the BGV B4 standard. The covers of the explosion - venting panels are loosely installed with fixed chains and will automatically fall back after pressure relief. The explosion - venting panels are equipped with snow canopies to prevent rain and snow. The explosion - venting pressure is 580Mpa.
The cabinet door is made of single or composite materials with functions such as fire - proof, lightning - proof, anti - static, anti - corrosion, and non - sparking. It is equipped with an internal fire - fighting push - bar lock. When the push - bar is used to open the door, it will trigger a 100 - decibel alarm sound for linked alarm. In case of fire and various emergencies, it ensures that a large number of people inside the cabinet can quickly and safely escape. The door opens in the evacuation direction and can be opened from the inside.
The interior of the cabinet should be divided into areas. There is an operation room for operators to make corresponding protective preparations before entering the storage area. There are flammable and explosive storage cabinets inside the cabinet, and the storage locations are reasonably divided according to different stored items for partitioned storage.

2

Intelligent Control System

2.1 The control system is equipped with a 7 - inch full - color screen, which can display the status of various parameters in real - time.
2.2 The entire equipment is centrally controlled by a microcomputer system. According to the parameters set by the customer, the computer system automatically and real - time detects the parameters of each sensor, and controls functions such as access control, lighting, early warning and alarm, and temperature control.
2.3 In case of possible danger, the control system will activate an audible and visual alarm. The alarm sound is above 85 decibels, providing long - distance early warning.

3

Internal Storage System

Internal Storage System

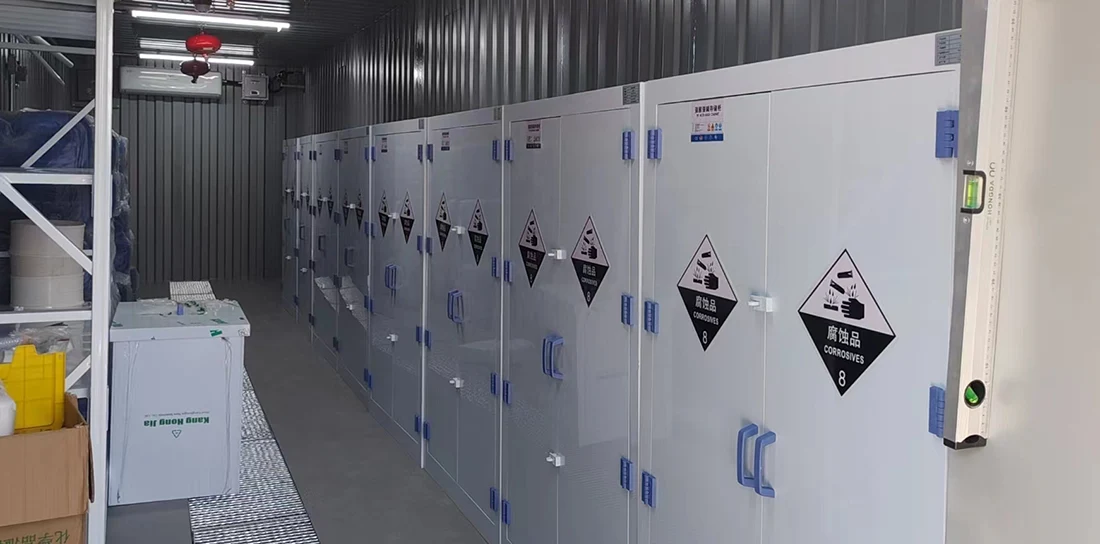

3.1 Flammable and Explosive Storage Cabinet: 1 set
① Specification: H1650W1090D460mm
3.2 Toxic and Hazardous Storage Cabinet: 1 set
① Specification: H1650W1090D460mm

4

Ventilation and Exhaust System

The ventilation and exhaust system consists of 4 ventilation louvers and ventilation manifolds.
4.1 Ventilation louvers are installed inside the cabinet, and insect and rodent - proof nets are set inside the louvers for air intake.

5

Exhaust Gas Purification System

5.1 The purification system consists of 1 plasma purifier, connection manifolds, etc.
5.2 The exhaust gas purification system must be independent of the cabinet and connected to the cabinet through pipelines for easy maintenance. It also helps to reduce noise, vibration and harm to personnel during operation.
5.3 The exhaust gas after purification meets the "Integrated Emission Standard of Air Pollutants (GB16297)".
5.4 Requirements for the plasma purifier:
Processing air volume: 5000M³/h; Energy consumption: 400W

6

Temperature Control System

The temperature control system consists of a full - inner - wall fire - proof and heat - insulating layer and 1 explosion - proof air conditioner.
6.1 A 50mm - thick Class A fire - proof and heat - insulating layer is set on the inner wall of the cabinet to prevent the internal temperature from overheating when exposed to sunlight.
6.2 An explosion - proof air conditioner is installed inside the cabinet to effectively reduce the internal temperature when the room temperature is too high.
6.3 Requirements for the explosion - proof split - type air conditioner (window units are strictly prohibited, anti - vibration and noise - reduction are required):
Rated voltage: 220V 50Hz
Rated current for cooling/heating: 10.7/16.5A
Waterproof rating: 1P*4
Noise (indoor/outdoor): 40/59dB

7

Explosion - proof Power Supply System

The explosion - proof power supply system consists of 1 explosion - proof distribution box, 2 explosion - proof lights, and 1 explosion - proof emergency light.
7.1 The shell of the main control distribution box is made of aluminum alloy and coated with epoxy resin.
7.2 The internal lighting uses explosion - proof fluorescent lamps, and an explosion - proof emergency light is installed at the exit.
7.3 The internal temperature sensor, air conditioner, and combustible gas sensor are all designed with explosion - proof features.
7.4 The internal circuit wiring is set according to explosion - proof requirements.

8

Chemical Leakage Recovery System

8.1 The integrated leakage system inside the cabinet can hold 15% of the total volume.

9

Fire - fighting and Extinguishing System

9.1 Two sets of automatic fire - extinguishing devices are installed on the top inside the cabinet. When the fire temperature rises, the dry powder agent in the fire - extinguishing device is ejected from the nozzle under the action of nitrogen for fire - fighting. The fire - extinguishing device has the characteristics of fast fire - extinguishing speed and safe use.
9.2 Four 2kg hand - thrown fire - extinguishing devices are equipped inside the cabinet, which can be manually thrown for fire - fighting in an emergency.

10

Personal Protective Equipment

10.1 The embedded personal protective equipment box is equipped with 2 sets of special protective clothing, 2 sets of special protective masks, 2 pairs of protective gloves, 2 pairs of protective glasses and other personal protective equipment.
10.2 It also includes 1 set of leakage adsorption pads, 10 pieces of adsorption cotton, and 2 sets of other adsorption supplies.

11

Electrostatic Protection Device

11.1 A human body electrostatic release column is set at the cabinet door, which is connected to the main body of the cabinet. Staff can touch it before entering to discharge the static charge on their bodies to prevent electrostatic hazards.
11.2 An independent lightning and surge protector is installed at the main power supply access point to prevent electrostatic hazards.
11.3 The electrostatic release system consists of three 2500505mm angle irons inserted directly into the ground to ensure that the cabinet's static electricity is less than 4Ω.

12

Video Surveillance System

12.1 One explosion - proof video surveillance camera is installed inside the cabinet, with ultra - high - definition 960P resolution and night - time infrared monitoring function.
12.2 One ultra - high - definition 960p peripheral surveillance camera is installed outside.
12.3 An RJ45 network port is reserved for connection with the school's main monitoring system.
12.4 The video surveillance system has a storage and memory function, which can record more than one - month's monitoring data and can be viewed on mobile phones and computers at any time.

13

Remote Monitoring System

13.1 One set each of a humidity indicator device, a temperature sensing device, and a combustible gas monitoring sensing device are installed inside the cabinet, with LED on - site data display function for monitoring the internal environment of the cabinet.
13.2 Each sensing device can monitor the inside of the cabinet in real - time 24 hours a day. When the indicators reach the set safety values, the control system will intelligently execute various disposal measures and alarms.
13.3 When the parameter indicators reach the set values, the monitoring system will send a text message to notify and remind the customer.

14

Emergency Escape

14.1 An emergency escape door that can be opened from the inside is set at the rear of the cabinet. An emergency lighting lamp and a safety exit indicator are installed above the emergency escape door to facilitate personnel evacuation in an emergency.

15

Emergency Eyewash and Shower

15.1 The height of the shower is 2100mm ± 20mm, and the height of the eyewash is 1030mm ± 20mm.
15.2 The eyewash and shower use a SU304 stainless - steel combined structure, which can withstand water pressure > 5kg/cm².
15.3 It is installed on one side outside the cabinet door and can be reached within 5S in an emergency.

GS-ZCG01

Dimensions (m): L4W3H2.8

Voltage (V): 380

Total Power (KW): 6

Internal Volume (m³): 25

Total Mass (T): 5.5

Air Volume (m³/h): 3864-7728

Filtration Capacity (m³/h): 1704

Noise (dB):≤70

Solid and Liquid Storage Capacity (T): Liquid storage capacity is 2.88; Solid storage capacity is 3.6

GS-ZCG02

Dimensions (m): L6W3H2.8

Voltage (V): 380

Total Power (KW): 6

Internal Volume (m³): 30

Total Mass (T): 6.5

Air Volume (m³/h): 3864 - 7728

Filtration Capacity (m³/h): 1704

Noise (dB):≤70

Solid and Liquid Storage Capacity (T): Liquid storage capacity is 4.08, and solid storage capacity is 5.

GS-ZCG03

Dimensions (m): L9W3H2.8

Voltage (V): 380

Total Power (KW): 6

Internal Volume (m³): 30

Total Mass (T): 9.5

Air Volume (m³/h): 3864 - 7728

Filtration Capacity (m³/h): 1704

Noise (dB):≤70

Solid and Liquid Storage Capacity (T): Liquid storage capacity is 6.58, and solid storage capacity is 8.4.

GS-ZCG04

Dimensions (m): L12W3H2.8

Voltage (V): 380

Total Power (KW): 6

Internal Volume (m³): 60

Total Mass (T): 10.5

Air Volume (m³/h): 3864 - 7728

Filtration Capacity (m³/h): 1704

Noise (dB):≤70

Solid and Liquid Storage Capacity (T): The liquid storage capacity is 7.92, and the solid storage capacity is 10.5.
